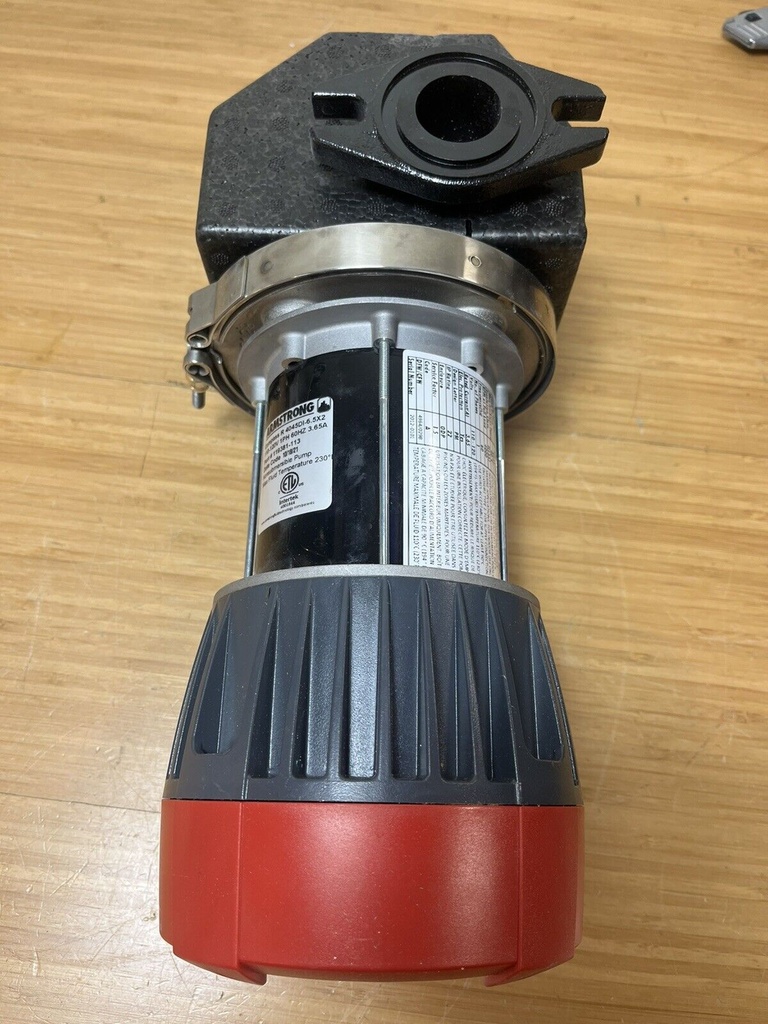

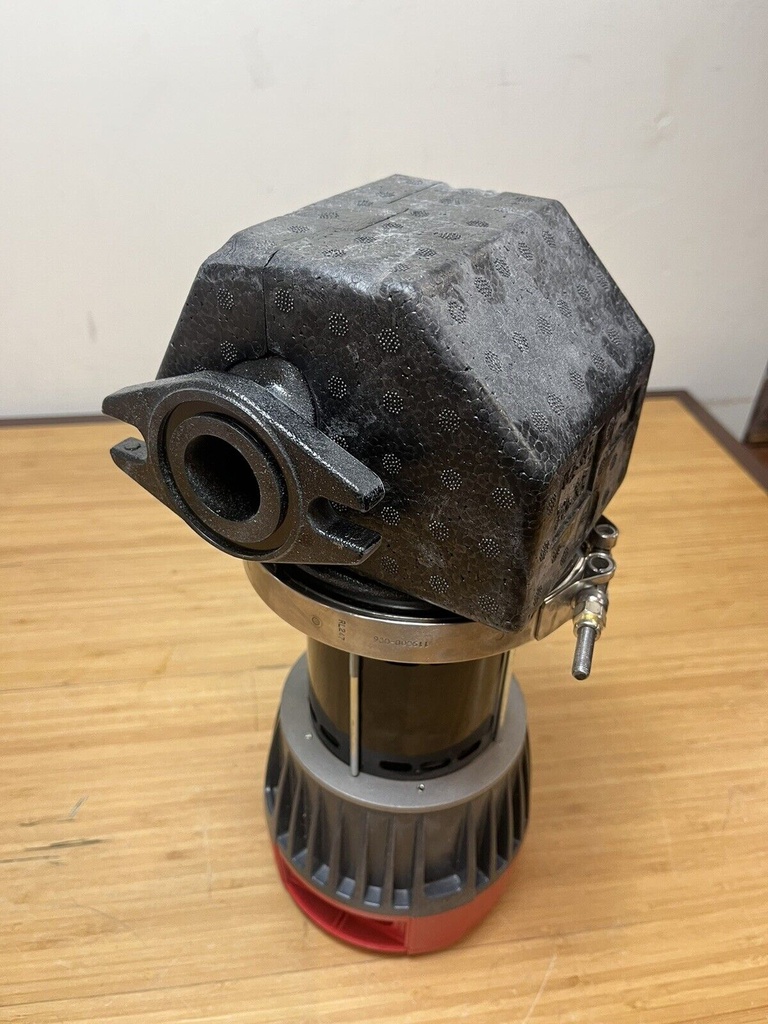

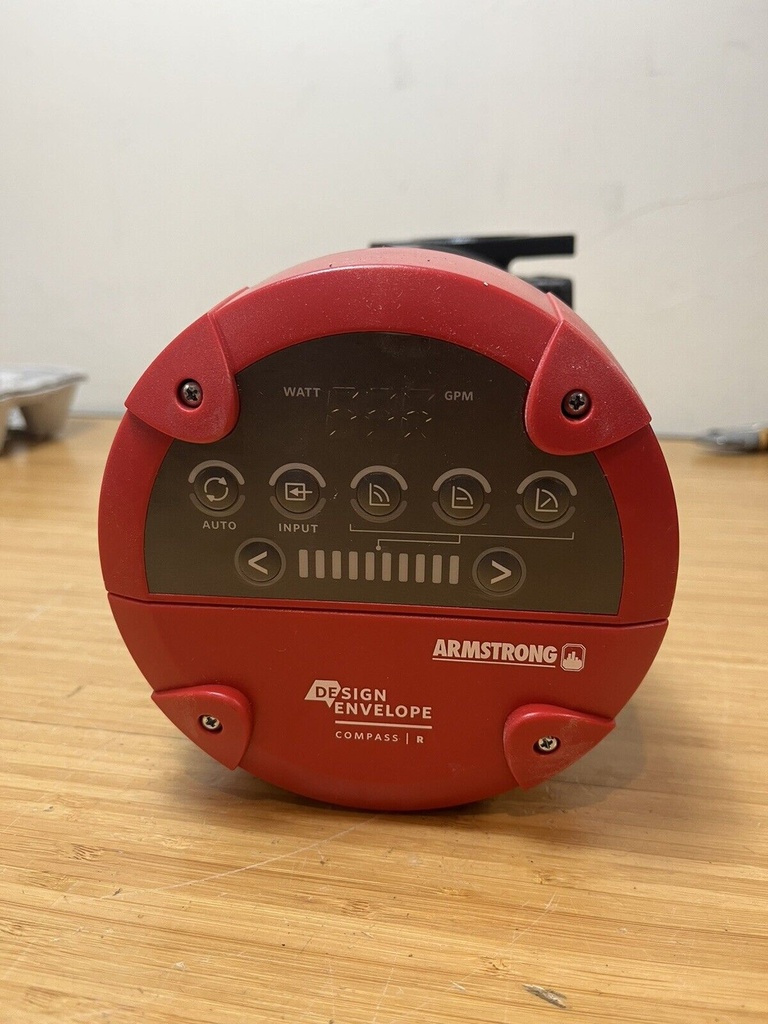

Armstrong 119381-113 R40-45DI Compass Circulating Pump Design Envelope Duct Iron

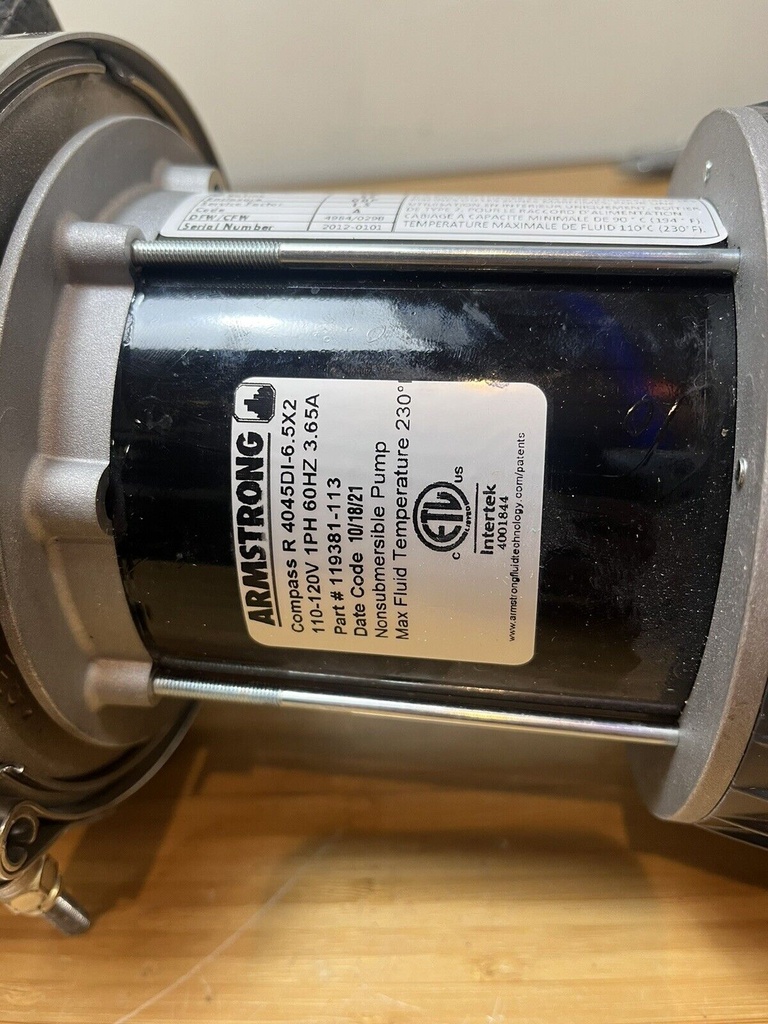

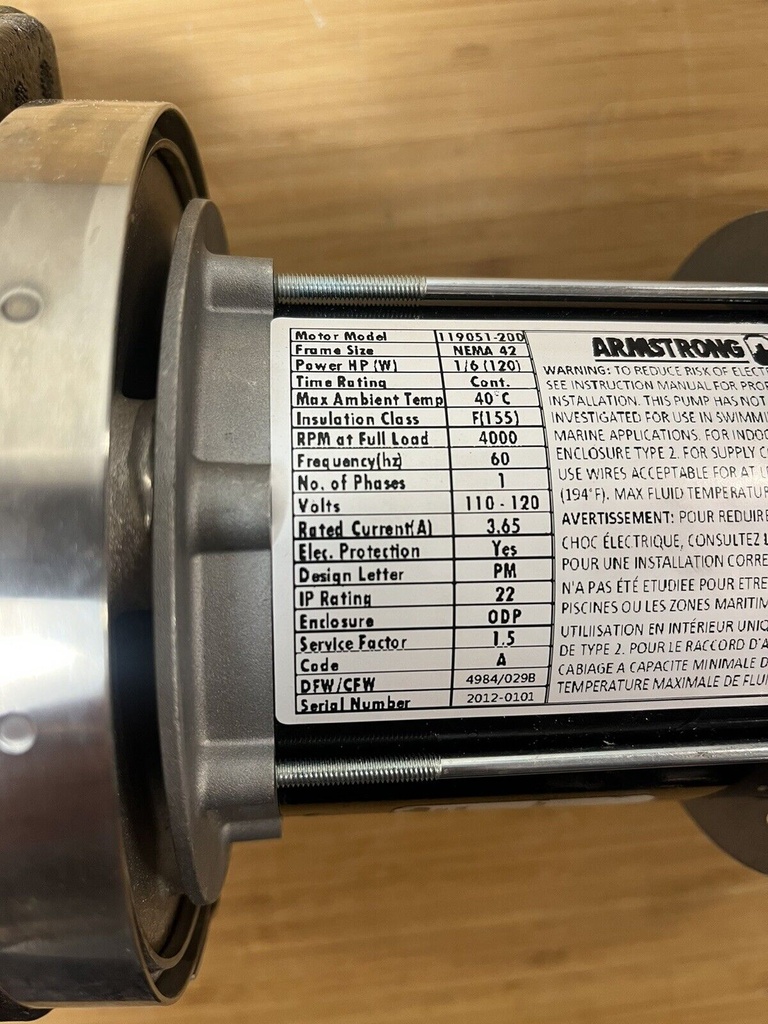

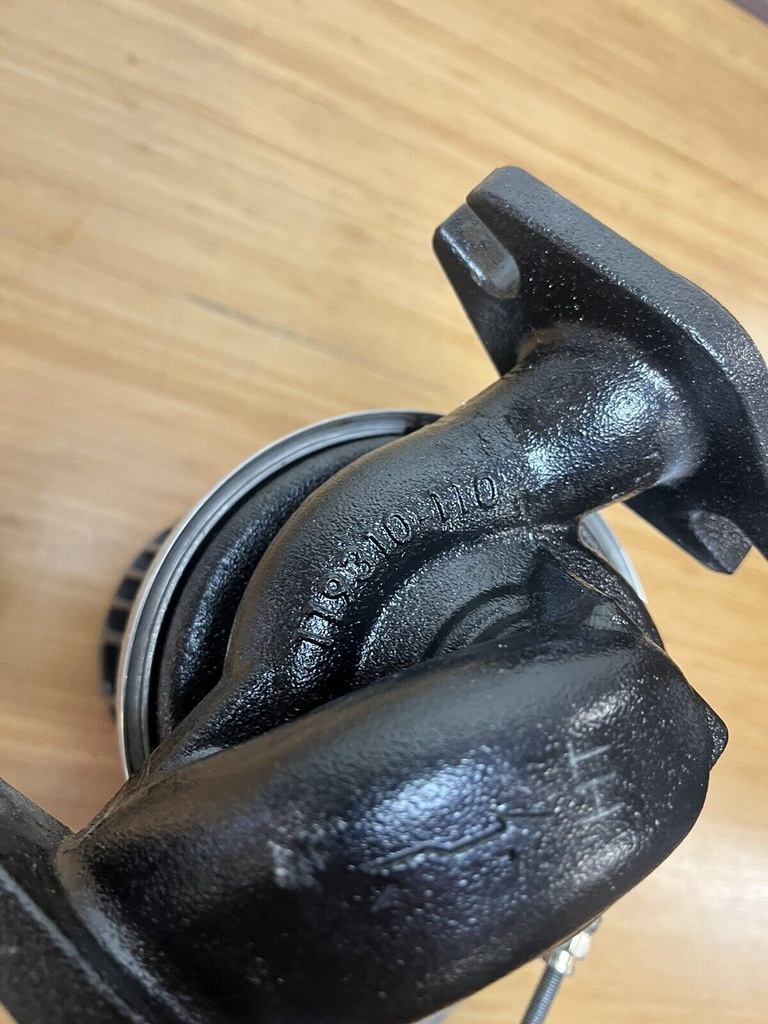

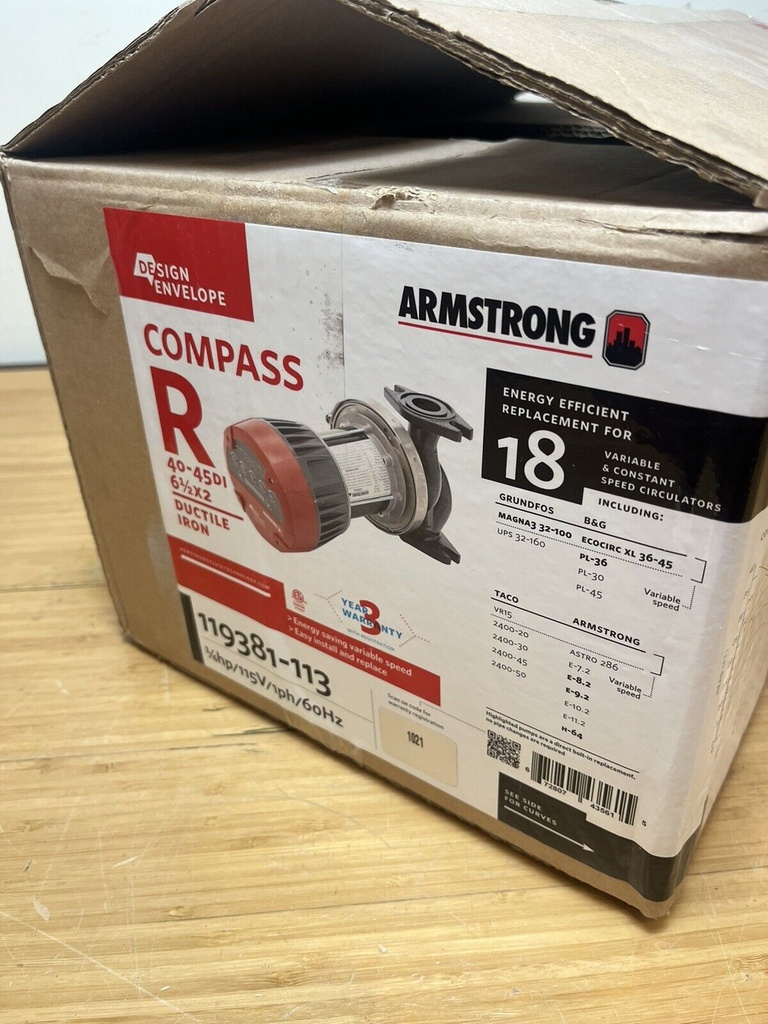

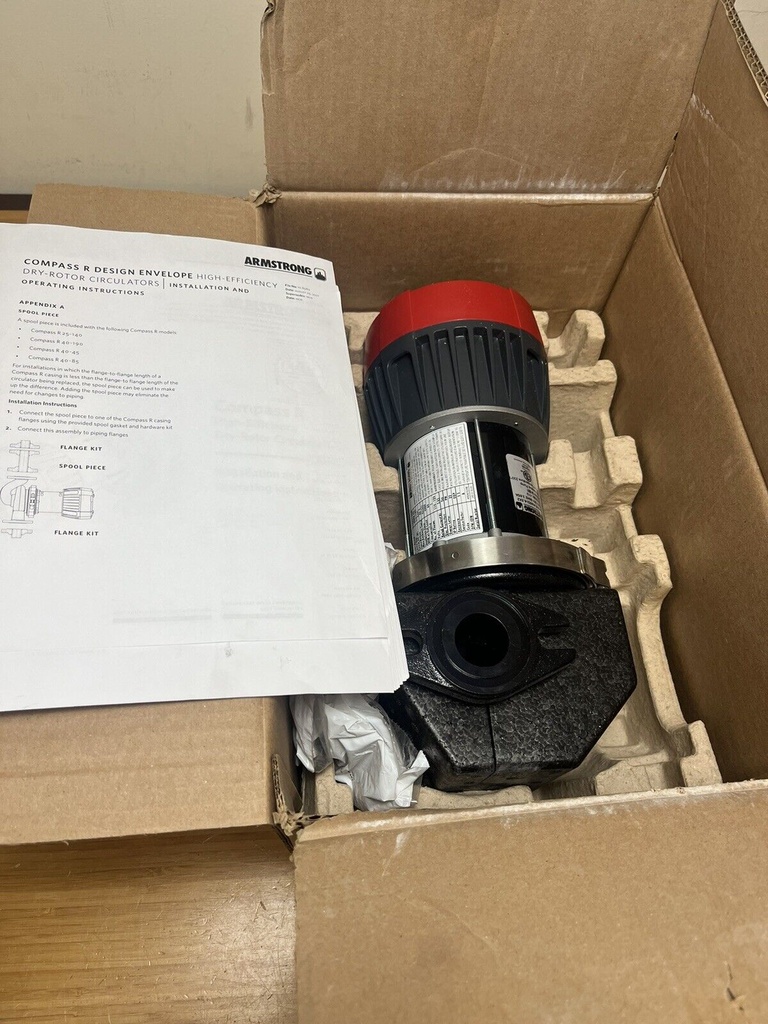

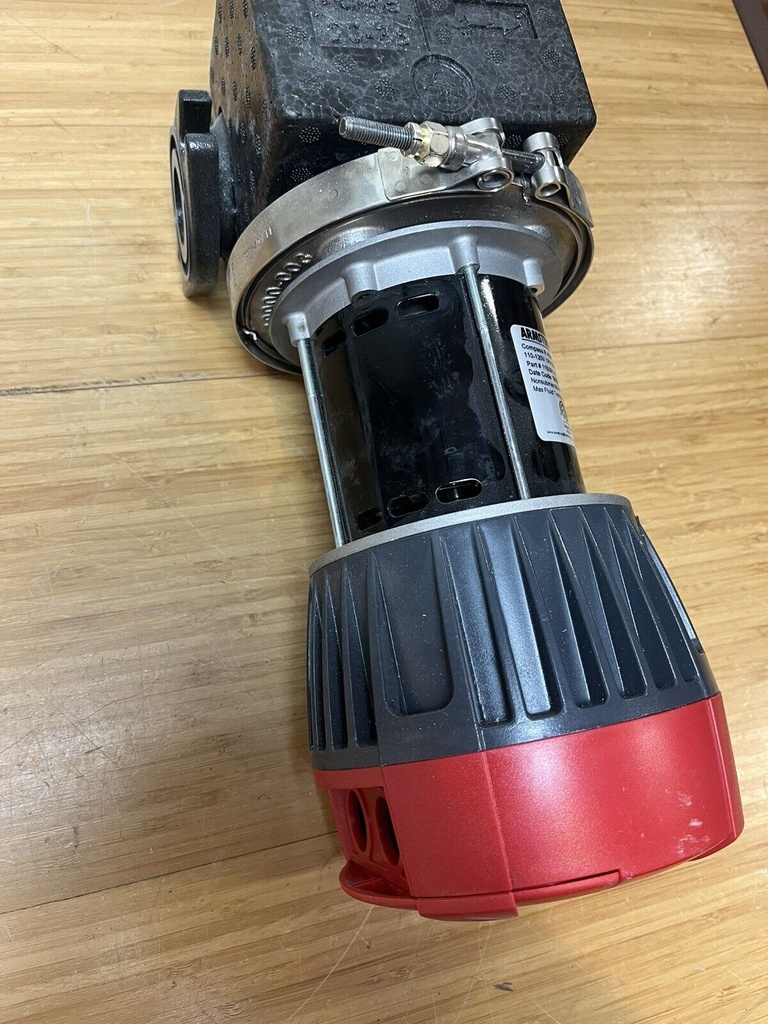

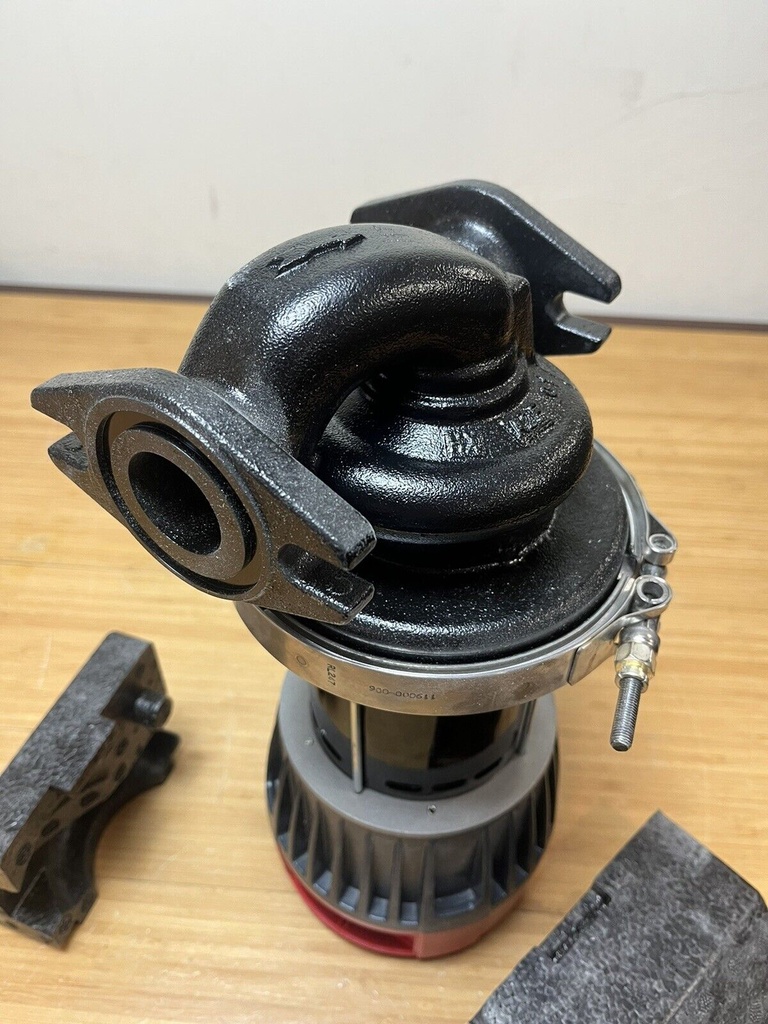

New package, only was opened for a brief inspection and to take all the details of the stickers and specs ratings (not all are available on the outside stickers).Copass R 4045DI-6.5X2It is the Ductile Iron version of 119381-113 model.Nonsubmersible PumpMax Fluid Temperature 230 FSpecs are filled in the attributes filed (and shown on one of the photos).The Armstrong Compass R circulating pump is an energy-efficient variable speed dry-rotor circulator forresidential heating and cooling; potable water supply.Designed to replace existing fixed speed circulators, with popular flange-to-flange dimensions, Compass R can be considered a universal replacement for all circulators in its capacity range.
| Brand: Armstrong |
| MPN: 119381-113 |
| Type: Centrifugal Pumps > Hot Water Circulating Pumps |
| Country/Region of Manufacture: US |
| UPC: 672807435615 |
| Battery Capacity: N/A |
| California Prop 65 Warning: Y |
| Length: 16.500 |
| IP Rating: 22 |
| Unit Quantity: 1 |
| Protection: Yes |
| Modified Item: No |
| DCF/CFW: 4984/029B |
| Rated Current (A): 3.65 |
| Enclosure: ODP |
| Insulation Class: F(155) |
| Depth: 11.600 |
| Design Letter: PM |
| Service Factor: 1.5 |
| Supply Voltage: 110-120 V |
| Volts: 110-120 |
| Max Ambient Temp: 40 C |
| Maximum RPM: 4000 |
| Motor Model: 119051-200 |
| Code: A |
| Time Rating: Cont. |
| of Phases: 1 |
| Frequency: 60 Hz |
| Rated Power: 1/6 hp |
| Frame Size: NEMA 42 |
